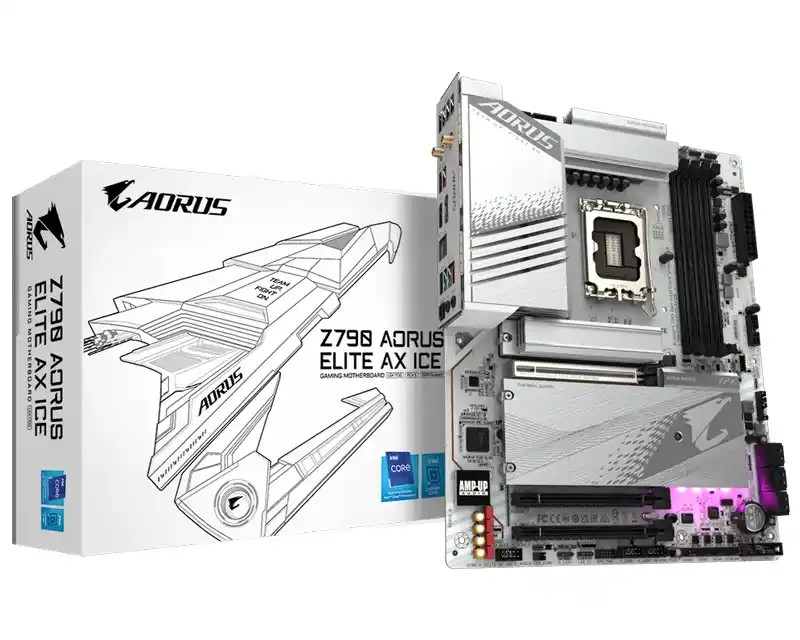

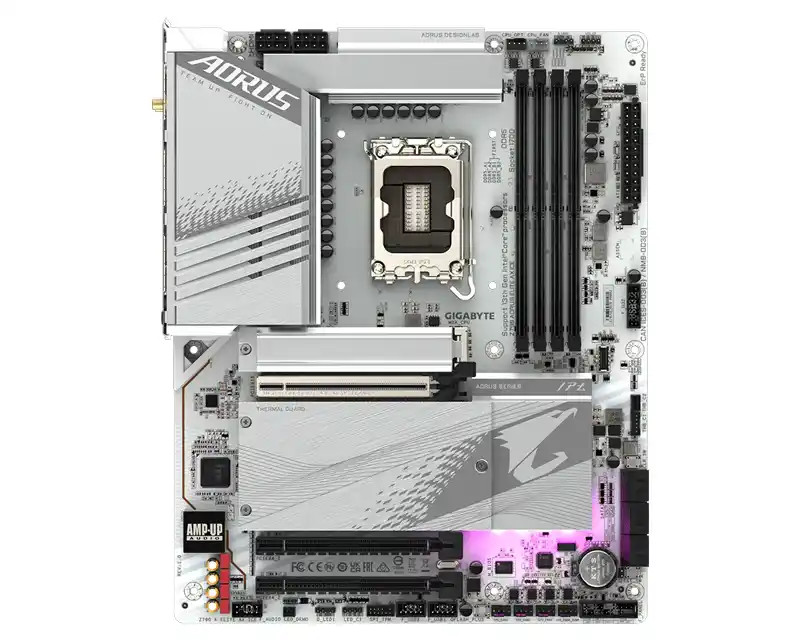

Matična ploča 1700 Gigabyte Z790 AORUS ELITE AX ICE

Memorijski slotovi: 4x DDR5

Podržane memorije: 6.000MT/s (O.C.), 5.800MT/s (O.C.), 7.200MT/s (O.C.), 7.000MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 4.800MT/s, 7.600MT/s (O.C.), 5.600MT/s (O.C.), 5.400MT/s (O.C.), 5.200MT/s (O.C.), 7.400MT/s (O.C.), 4.000MT/s

Maksimalna ukupna memorija: 192GB

Ostale osobine: Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Podrška za ECC UDIMM memory, Dual Channel

1x PCI Express 5.0 (x16 mode)

1x PCI Express 4.0 (x4 mode)

1x PCI Express 3.0 (x4 mode)

Ostali skladišni interfejs: 4x M.2 slot

RAID: RAID 0, RAID 1, RAID 5, RAID 10

Model: Realtek

Wi-Fi: Da

Bluetooth: Da

Bluetooth verzija: 5.3

Model: Realtek

Napomena: High Definition, Podrška za S/PDIF izlaz

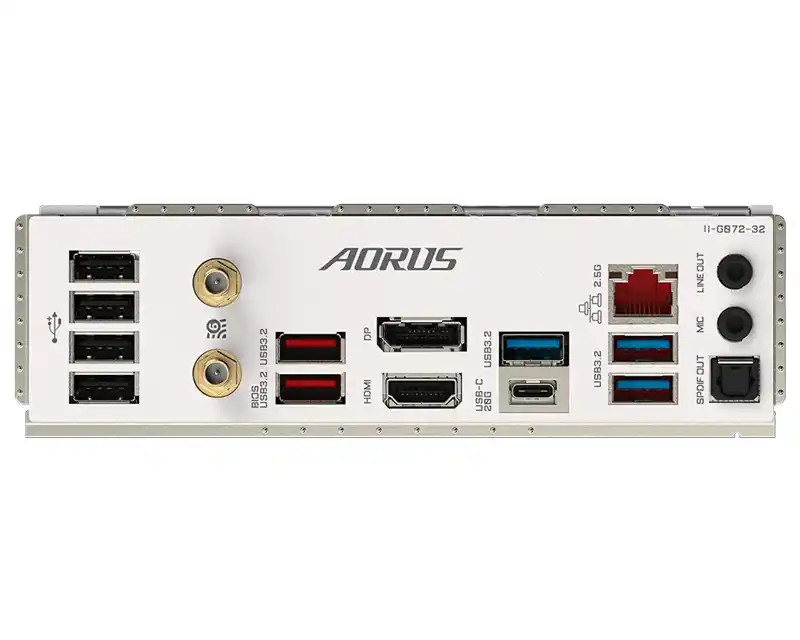

1x HDMI 2.0

1x USB-C priključak

2x USB 3.2 (Tip A) Gen2

3x USB 3.2 (Tip A) Gen1

1x USB 3.2 (Tip C) Gen2x2

4x USB 2.0 priključci

1x RJ-45 (LAN)

2x Audio 3.5mm, 1x S/PDIF optički

Ostali priključci: 2x SMA antenna connectors (2T2R)

1x USB 3.2 (podrška za 1 USB 3.2 Gen 2 Tip C porta), 1 (podrška za USB 3.2 Gen 1 port)

2x USB 2.0 2

1x Audio Front panel

Ostali priključci:

3x System Fan header,

1 x front panel header,

1 x Clear CMOS jumper,

1 x water cooling CPU fan header,

1 x system fan/water cooling pump headers,

1 x Q-Flash Plus button,

6 x SATA 6Gb/s connectors,

1 x reset jumper,

2x RGB LED strip headers,

1 x Clear CMOS button,

1 x reset button,

1 x 4-pin CPU Fan conector,

2x addressable LED strip headers,

4x M.2 Socket 3,

2 x Thunderbolt add-in card connectors

Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

Format: ATX

Dimenzije: 305mm x 244mm
